CDA SCD4509 (95) 45cm Slimline Fully Integrated Dishwasher with 9 Place Settings in Black - (New Stock) - HW182695

9 Place Setting Slimline Capacity

Despite its compact 45cm format, the CDA SCD4509 accommodates 9 place settings, providing useful capacity for plates, bowls, cups, glasses, cutlery and everyday cookware.

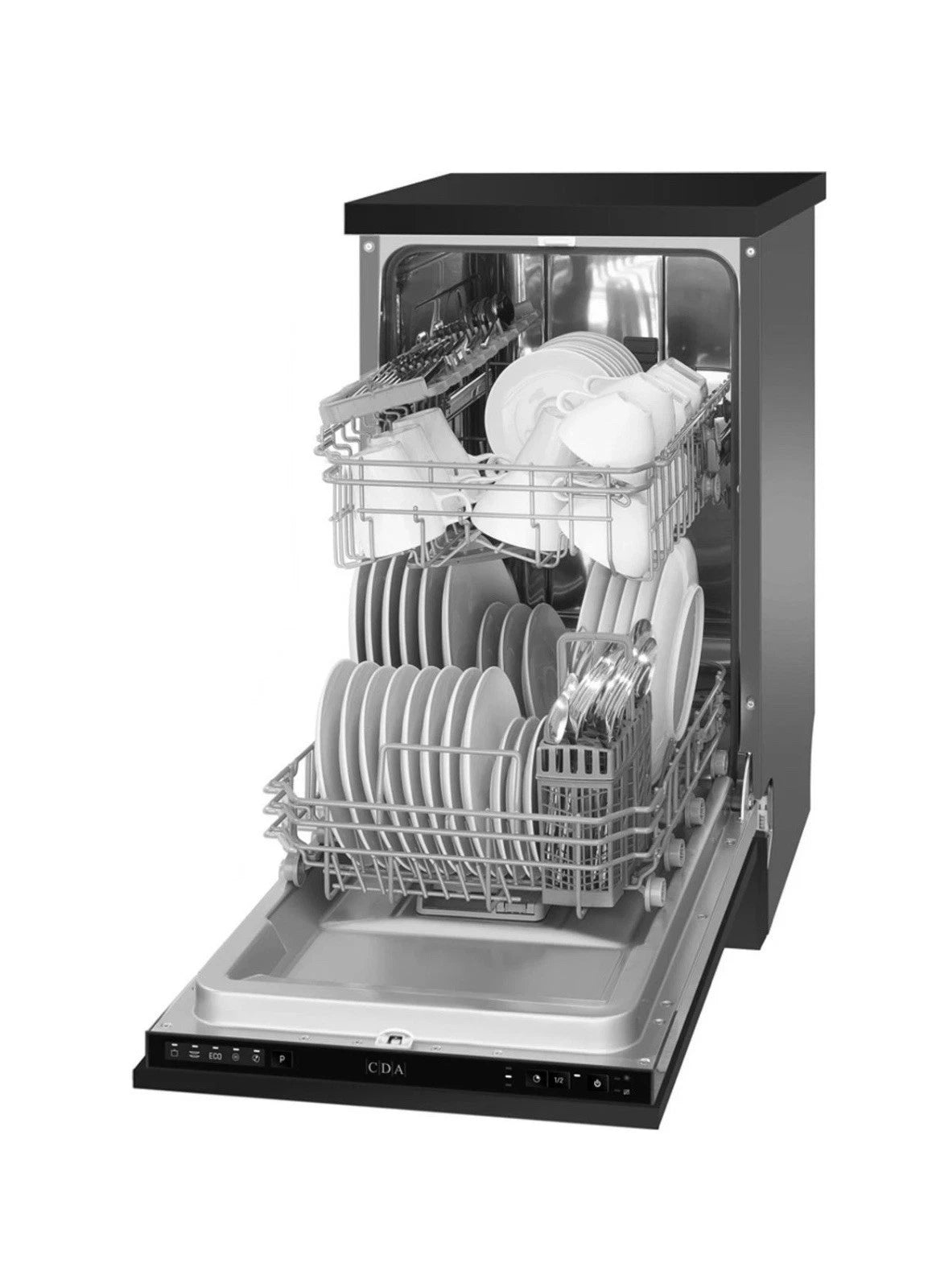

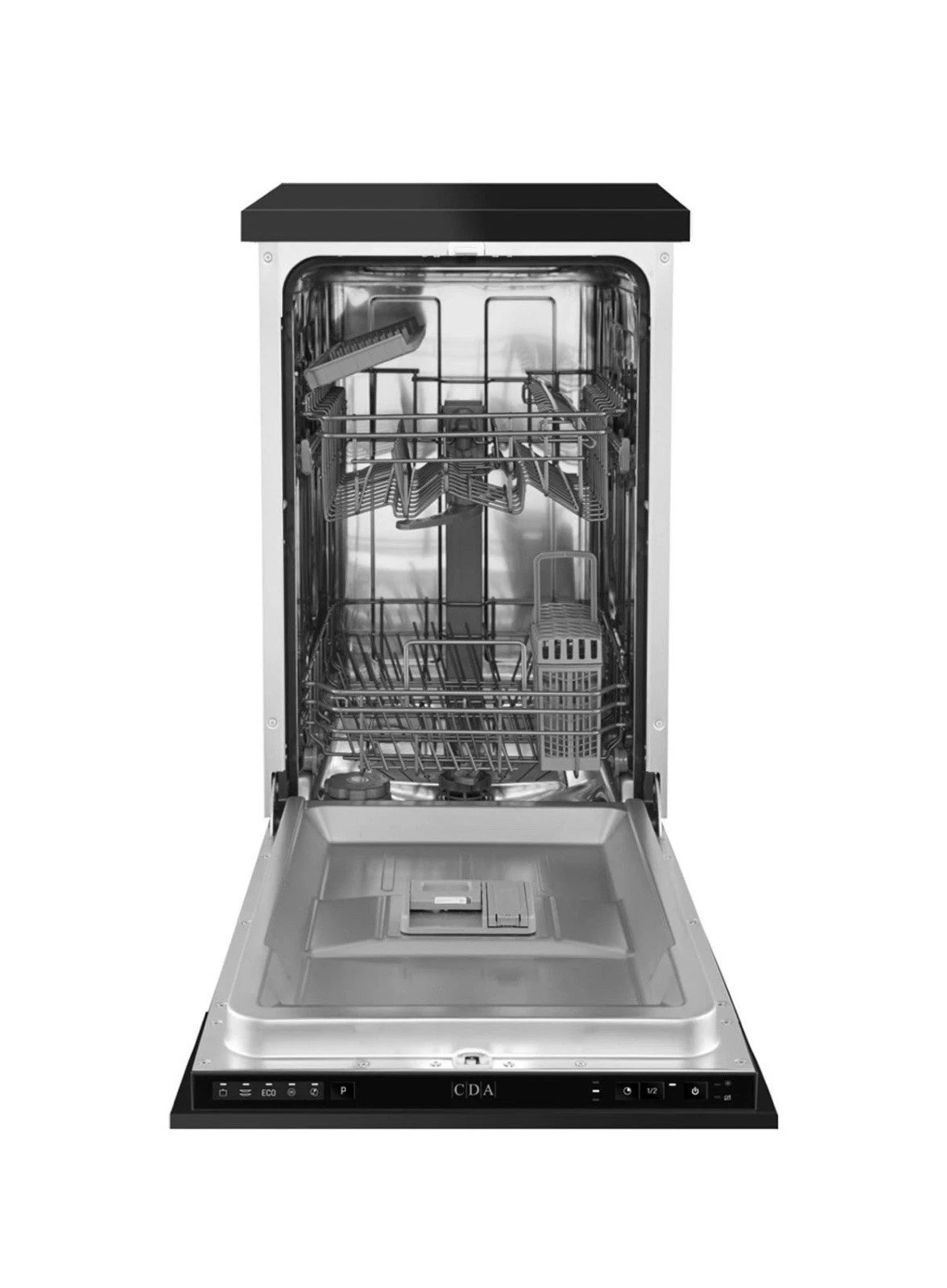

The interior has two grey baskets, with a height-adjustable upper basket that allows the loading arrangement to be adapted for taller items. Folding racks in the lower basket provide additional flexibility when loading larger dishes and cookware.

Five Wash Programmes

CDA provides five programmes covering intensive cleaning, everyday loads and quicker washes:

1. Intensive – 205 minutes, 1.378kWh and 15.3L; intended for heavily soiled items.

2. Universal – 175 minutes, 1.287kWh and 13.1L for general everyday washing.

3. Eco – 235 minutes, 0.704kWh and 9L; the most efficient programme for normally soiled tableware.

4. 90 Minute – 90 minutes, 1.234kWh and 10.2L.

5. Rapid – 30 minutes, 0.611kWh and 10L for lighter loads requiring a faster wash.


This combination makes the SCD4509 suitable for everything from heavily soiled dinnerware to lightly used dishes that need cleaning quickly.

Half Load Function

The Half Load option is useful when there aren't enough dirty dishes to justify waiting for a full dishwasher.

CDA includes a dedicated Half Load button on the control panel, allowing smaller quantities of crockery to be washed more conveniently.

Residual Heat Drying

The SCD4509 uses Residual Heat Drying. Heat remaining inside the dishwasher after the final hot rinse helps dry the contents without requiring a separate high-powered drying system.

This should not be confused with an automatic-opening drying system: CDA's current manufacturer specification specifically lists Residual Heat Drying for this model.

3, 6 or 9-Hour Delay Timer

A 3/6/9-hour delay timer allows the start of a programme to be postponed. This can be useful for households wanting the dishwasher to operate later in the day or overnight.

An acoustic end-of-programme signal lets you know when the wash has finished.

LED Indicators

The integrated control panel includes a white LED display, together with separate LED salt and rinse-aid indicators.

These indicators provide a convenient reminder when dishwasher salt or rinse aid needs replenishing.

Water Softener

The SCD4509 incorporates an adjustable water-softening system, an important feature for UK households in hard-water areas.

CDA's manual provides six water-softener settings (H1–H6) so the appliance can be configured according to local water hardness. The factory setting is H3.

Correctly setting the water softener can help reduce mineral deposits and improve washing performance, particularly in areas with hard mains water.

The CDA SCD4509 45cm Fully Integrated Dishwasher is a space-saving slimline integrated dishwasher designed for UK fitted kitchens where a standard 60cm appliance may be too wide. With 9 place settings, five wash programmes, a Half Load function, 3/6/9-hour delay timer and residual heat drying, it provides practical everyday dishwashing while remaining completely concealed behind a matching kitchen furniture door.

At only 448mm wide, the SCD4509 is particularly suitable for smaller kitchens, apartments and households wanting to maximise cupboard space. CDA specifies an E energy rating, 9 litres of water per Eco cycle, 70.4kWh per 100 Eco cycles and a 49dB operating noise level.

Manufacturer's Specificaton

Brand CDA

Model SCD4509

Appliance type Fully integrated dishwasher

Size 45cm slimline

Installation Fully integrated / furniture door required

Place settings 9

Number of programmes 5

Programmes Intensive, Universal, Eco, 90 Min, Rapid

Half Load Yes

Delay start 3 / 6 / 9 hours

Drying system Residual Heat Drying

End-of-programme signal Acoustic

Display White LED

Salt indicator LED

Rinse-aid indicator LED

Number of baskets 2

Upper basket Height adjustable

Lower basket Folding racks

Basket Colour Grey

Adjustable feet Yes

Energy efficiency class E

Eco energy consumption 70.4kWh / 100 cycles

Eco energy consumption per cycle 0.704kWh

Eco water consumption 9 litres/cycle

Eco programme duration 3 hours 55 minutes / 235 min

Noise level 49dB(A)

Noise emission class C

Energy Efficiency Index (EEI) 55.9

Cleaning Performance Index 1.125

Drying Performance Index 1.065

Rated electrical power 2.3kW

Supply voltage 230V

Manufacturer-listed power supply 10A

Mains connection UK plug fitted

Mains cable 1.5m

Water inlet hose 1.5m

Water outlet hose 1.4m

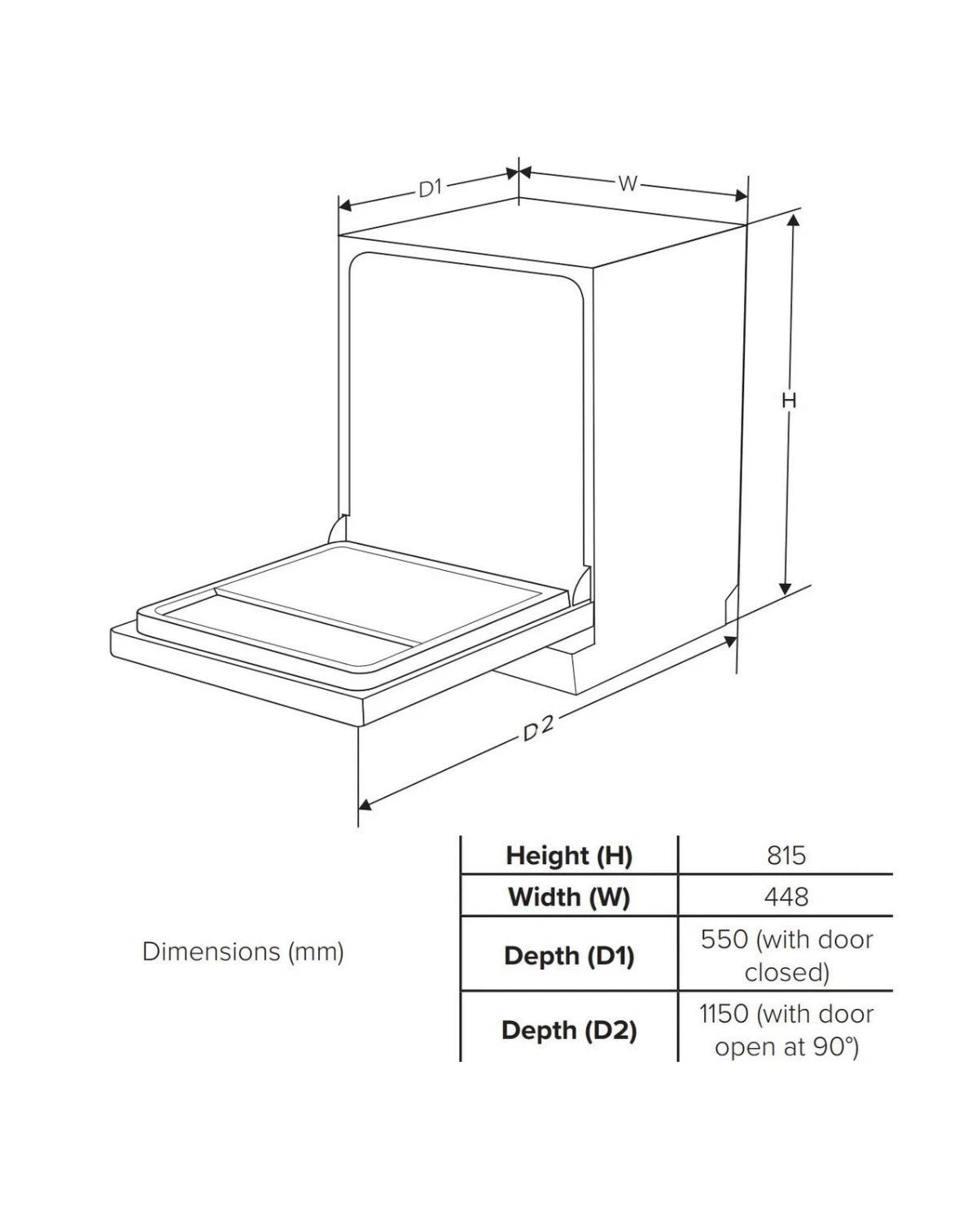

Height 815mm

Width 448mm

Depth 550mm

Depth with door open 1150mm

Height adjustment 50mm

Packaged H × W × D 890 × 495 × 645mm
